If you’re working with LED lighting, security cameras, or even high-end smart home systems, you have likely seen the term Class 2 power supply stamped on a lot of labels. But what does it actually mean for your project? Is it just a safety sticker, or does it change how you have to wire your entire building?
A Class 2 power supply is basically a type of power source that limits its output voltage and current to reduce the risk of electric shock and fire. It follows safety standards like UL 1310, making it safe for low-power applications such as LED lighting, security systems, and control circuits. Unlike a Class II power supply, which refers to double insulation, Class 2 focuses on output power limits for safety.
At Pacoli Power, as we move through 2026, the demand for safer, more efficient power distribution is at an all-time high. Understanding these classifications isn't just for engineers anymore; it is essential for anyone who wants to ensure their setup is compliant, safe, and built to last.
Today, we’re going to break down everything you need to know about Class 2 power supplies. Let’s look at the strict regulations that define them, how they differ from the similarly named "Class II" units, and why they are the preferred choice for modern low-voltage applications.
What Is a Class 2 Power Supply?
Let us start with the most basic definition to clear the air. In the United States, a Class 2 power supply is a safety designation defined by the National Electrical Code (NEC) and Underwriters Laboratories (UL).
Class 2 Power Supply Definition (Simple Explanation)
In the simplest terms, a Class 2 power supply is a device that is strictly limited in its power output. Because the voltage and current are kept below specific "safe" thresholds, these units are considered significantly less likely to cause an electrical shock or start a fire.
Think of it as a safety "governor" for your electricity. By capping the amount of energy that can flow through the wires, the NEC allows you to use simpler, more cost-effective wiring methods because the inherent risk is so much lower.
Key Characteristics of Class 2 Power Supplies
- Limited Power: They never exceed a total power output of 100 Volt-Amperes (VA).
- Controlled Voltage: They typically operate at 30V AC or 60V DC or less.
- Built-in Protection: They must include internal safety mechanisms, like fuses or smart circuits, that shut the power down if it starts to draw too much current.
- Specific Labeling: You will always see a "Class 2" mark clearly printed on the unit’s casing.
Why Class 2 Power Supplies Are Considered Safe
The reason these are viewed as the gold standard for safety is that the energy level is too low to sustain a dangerous arc or cause a lethal shock to a healthy adult under normal dry conditions. Because of this, the NEC (specifically Article 725) permits the use of smaller gauge wires and even allows for some wiring to be run without a protective conduit in certain applications.
What Is a Class II Power Supply?
This is where things often get confusing. While "Class 2" (the number) is about power limits, Class II (the Roman numeral) is all about how the device is built on the inside.
A Class II power supply refers to an IEC (International Electrotechnical Commission) protection class. It describes the method used to protect the user from electrical shock.
Double Insulation and No Grounding Concept
The hallmark of a Class II device is double insulation. Most standard electrical devices (Class I) rely on a three-prong plug with a "ground" wire to keep you safe. If something breaks inside, the electricity flows into the ground instead of into you.
A Class II power supply doesn’t need that ground wire. Instead, it uses two layers of heavy-duty insulation (or one extra-thick reinforced layer) between the high-voltage internal parts and the outside casing. This makes it impossible for the outer shell to become "live," even if a component fails inside.
Key Features of Class II Power Supplies
- Two-Prong Plugs: Since there is no need for a safety ground, these often have simple two-prong AC plugs.
- Plastic Enclosures: You will frequently see these with non-conductive plastic housings.
- The Square Symbol: Look for the "square-within-a-square" symbol on the label. This is the universal mark for a double-insulated Class II device.
Class 2 vs. Class II Power Supply: What’s the Difference?
It is incredibly common to see people use these terms interchangeably, but in the world of professional power, they mean two very different things.
Regulatory vs. Design Classification
- Class 2 (Arabic 2): This is a North American safety standard (NEC/UL) focused on energy limits. It tells you how much power is coming out of the box and how you can wire it.
- Class II (Roman II): This is an International design standard (IEC) focused on insulation. It tells you how the box is built to prevent shock.
Safety Approach Comparison
A Class 2 unit protects you by making sure there isn't enough power to hurt you. A Class II unit protects you by making sure the power that is there can never touch you.
Common Misconceptions Between Class 2 and Class II
A power supply can be both Class 2 and Class II, but it doesn't have to be. For example, you could have a high-wattage 200W industrial power supply that is Class II (double insulated) but it is definitely not Class 2 because it exceeds the 100VA power limit.
| Feature | Class 2 (NEC/UL) | Class II (IEC) |
| Primary Focus | Fire and Shock Prevention (Energy Limit) | Shock Prevention (Insulation) |
| Max Power | 100 VA (Watt-equivalent) | No specific power limit |
| Grounding | May require ground | No ground required (Double Insulated) |
| Main Symbol | "Class 2" text on label | Square-within-a-square symbol |
Standards and Regulations for Class 2 Power Supplies
To maintain our high safety ratings, we have to follow some very specific "rules of the road." These aren't just suggestions; they are legal requirements for electrical installations.
UL 1310 Standard Explained
If a power supply wants to be called "Class 2," it must pass the rigorous testing of UL 1310. This standard tests how the device handles overloads, short circuits, and even physical damage. It ensures that under no circumstances, even if the device catches fire internally, will it ever let out more than the allowed "safe" amount of energy to the user.
NEC (National Electrical Code) Requirements
The NEC Article 725 is the "bible" for installers. It dictates that Class 2 circuits must be physically separated from "Class 1" or standard high-voltage power lines. This prevents a high-voltage surge from accidentally jumping onto your low-voltage lines and causing a disaster.
Output Voltage and Current Limits
The math for a Class 2 supply is strict. For a standard DC supply, the voltage must stay below 60V DC. If you are using a 24V DC system (very common in LEDs), your current is capped at 4.16 Amps (100W / 24V = 4.16A). If you use a 12V system, the limit is often capped at 5A or 8A depending on the specific safety category of the device.
International Standards and Compliance
While Class 2 is a North American term, most global manufacturers (like us at Pacoli Power) design our units to meet equivalent international standards like IEC 62368-1. This ensures that our products are ready for use in any market, from New York to London to Tokyo.
Power Limits of a Class 2 Power Supply
The 100VA limit is the "hard ceiling" of the Class 2 world. But why 100VA?
As of 2026, the NEC hasn't changed its core stance: for dry, indoor environments, 60V DC is the limit. Anything higher is considered a significant shock hazard. In wet environments, these limits drop even further to ensure user safety.
Maximum Current and Wattage Limits
The total power cannot exceed 100VA. In many cases, we calculate this as 100 Watts for DC applications. This is why you will rarely see a "150W Class 2 LED Driver." If you need 150 Watts of power, you typically have to use two separate 75W Class 2 drivers to stay within the safety code.
Why These Limits Improve Safety
By limiting the current, we prevent wires from overheating. Excessive heat is the #1 cause of electrical fires. Because a Class 2 supply will "trip" or shut down before it ever gets hot enough to melt insulation, the risk of a fire starting inside your walls is virtually zero.
Real-World Examples of Power Restrictions
Imagine you’re installing LED strips in a large kitchen. One long 20-foot strip might draw 120 Watts. A single Class 2 power supply cannot handle this. You would instead split the strip into two 60-Watt sections, each powered by its own Class 2 power supply. This keeps the entire installation "power-limited" and code-compliant.

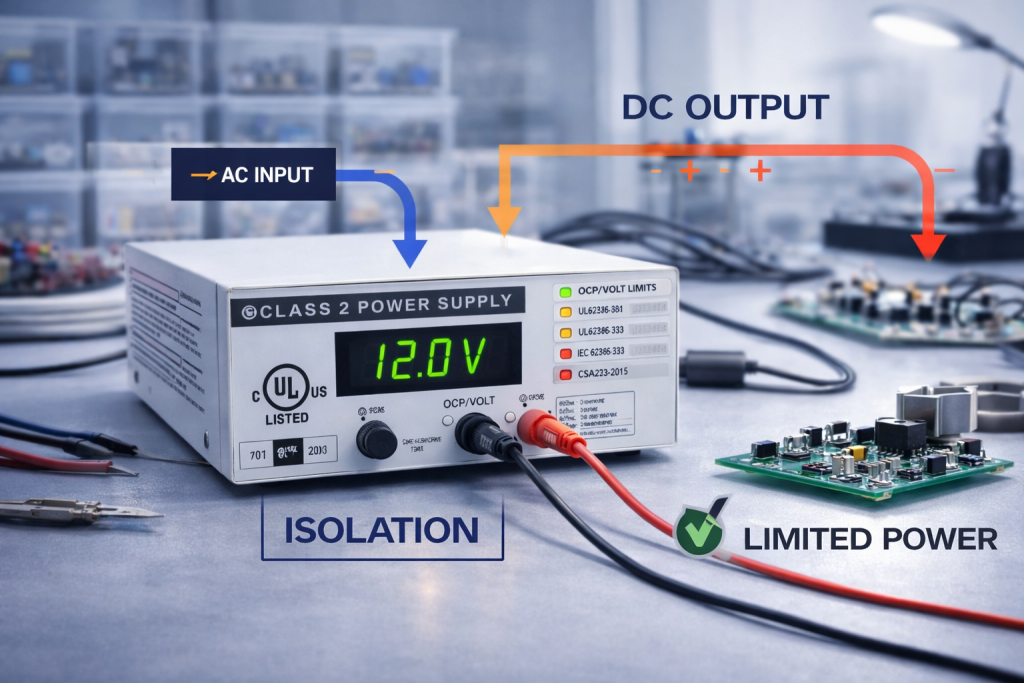

How a Class 2 Power Supply Works
It isn't just a standard transformer; it is a highly engineered piece of safety equipment.
Internal Circuit Design and Isolation
Inside the unit, we use a specialized isolating transformer. This creates a physical gap between the high-voltage "dirty" power from your wall and the low-voltage "clean" power going to your device. There is no direct electrical connection between the two sides.
Overcurrent Protection Mechanisms
Every Class 2 unit has a "security guard" circuit. It constantly monitors how much current is being pulled. If there is a short circuit at your LED strip, the power supply detects the surge instantly and cuts the power within milliseconds - long before anything has a chance to smoke or spark.
Role of Transformers and Regulation
Modern units also include high-end voltage regulation. This ensures that even if your building's power fluctuates, the output remains perfectly steady. This protects sensitive electronics, like smart thermostats and security sensors, from being fried by "dirty" power.
Common Applications of Class 2 Power Supplies
Because they are so safe and easy to install, these units are everywhere in 2026.
- LED Lighting Systems: Most under-cabinet lighting and decorative LED strips require Class 2 drivers to meet residential building codes.
- Security and Surveillance Systems: CCTV cameras, motion sensors, and smart locks rely on the stable, low-voltage power these units provide.
- HVAC Controls and Thermostats: Your smart thermostat (like Nest or Ecobee) is almost certainly powered by a 24V AC Class 2 transformer.
- Industrial Control Circuits: In factories, sensors and small control panels use Class 2 to allow technicians to work on the equipment without having to shut down the main power grid.
Benefits of Using a Class 2 Power Supply
Why would you select a power-limited supply over a high-power one? It comes down to simplicity and cost.
1. Enhanced Electrical Safety
You can sleep better knowing that your power system is physically incapable of delivering a lethal shock or starting a fire under normal conditions.
2. Reduced Risk of Fire and Shock
Because the unit is "self-protected," even a major failure in your downstream wiring won't cause a catastrophe at the power source.
3. Simplified Installation Requirements
This is the big one for contractors. Because Class 2 is so safe, the NEC allows you to use Class 2 rated cables (like CL2 or CL2R) that don't always need to be inside a heavy metal conduit. This can save you thousands of dollars in labor and material costs on a large project.
4. Cost-Effective Power Solutions
While the power supplies themselves are high-tech, the overall "system cost" is lower because you spend much less on expensive wiring and specialized electricians.
Limitations of Class 2 Power Supplies
No technology is perfect. There are some trade-offs you need to consider.
1. Restricted Power Output
The 100VA limit is non-negotiable. If you have a massive motorized gate or a high-end gaming PC, a Class 2 supply simply won't have the "juice" to run it.
2. Not Suitable for High-Power Devices
You cannot use Class 2 for heaters, large motors, or high-intensity industrial equipment. These will always require a Class 1 (standard power) circuit.
3. Performance Trade-Offs
If you’re running very long cables, you might experience "voltage drop" because the current is limited. This means your LEDs might look dimmer at the far end of the room unless you plan your wiring carefully.
How to Choose the Right Class 2 Power Supply?
Don't just buy the cheapest one on the shelf. Here is how to pick a winner.
1. Matching Voltage and Current to Your Device
Check your device's label. If it asks for 12V DC and 4A, you need a supply that offers exactly 12V and at least 4A of capacity. Remember, having more Amps available is fine (the device only takes what it needs), but having a higher Voltage will destroy your equipment.
2. Indoor vs. Outdoor Applications
If your power supply is going to live outside for landscape lighting, it must be IP-rated (like IP67) and specifically UL-listed for wet locations. A standard indoor Class 2 unit will fail quickly if exposed to moisture.
3. Importance of Certifications and Compliance
Always look for the UL Listed or ETL Listed mark. Avoid "no-name" power supplies from unverified online marketplaces; they often lack the critical internal safety fuses required to truly meet Class 2 standards.
4. Selecting Reliable Manufacturers
Partner with companies that have a track record in the power industry. A reliable manufacturer will provide clear data sheets and power distribution maps for their units.
Safety Tips When Using Class 2 Power Supplies
Even though they are "safe," they still deal with electricity. Treat them with respect.
- Don't Overload: Never try to bypass the safety limits by wiring multiple outputs together.
- Use Rated Cables: Only use cables marked CL2 or CL3 for in-wall installations. These are designed to resist fire spread.
- Proper Ventilation: Even though they run cool, they still need some airflow. Don't bury a power supply inside a pile of insulation in your attic.
Class 2 vs. Class 1 Power Supplies: Key Differences
When you’re designing an electrical system, the choice between Class 1 and Class 2 is essentially a choice between raw power and inherent safety. While they might look similar sitting on a shelf, the way the National Electrical Code (NEC) treats them is worlds apart.
Power Capacity and Energy Limits
The most obvious difference is the "ceiling." A Class 2 power supply is legally capped at 100VA (roughly 100 Watts). It is designed to be power-limited so it can't start a fire. A Class 1 circuit, however, has no such low-power restriction. It can deliver much higher voltages and currents (often up to 600V) making it the "heavy lifter" for industrial machinery and large-scale lighting.
Safety and Insulation Comparison
Because Class 2 units are energy-limited, they are considered safe from a fire and shock perspective. You can often touch the bare wires of a 12V Class 2 circuit without risk of a lethal jump. Class 1 circuits are a different story; they require robust insulation, proper grounding, and heavy-duty enclosures because they carry enough energy to be lethal and are a much higher fire risk if a short occurs.
Wiring and Installation Requirements
This is where the costs really diverge.
- Class 1: Because of the danger, these wires must be installed inside a protective conduit (like a metal pipe) and handled by a licensed electrician.
- Class 2: Since the power is limited, the NEC allows for "Class 2 rated" cables (like CL2) to be run without a conduit in many cases. This makes installation much faster and significantly cheaper for residential and light commercial projects.
Comparison Table: Class 1 vs. Class 2 Power Supplies
| Feature | Class 1 Power Supply | Class 2 Power Supply |
| Max Power Output | Up to 600V (High Power) | 100VA / 100W (Limited Power) |
| Shock Risk | High (Potentially Lethal) | Very Low (Considered Safe) |
| Fire Risk | Significant (Requires Protection) | Minimal (Inherent Safety) |
| Wiring Method | Conduit/Armored Cable Required | CL2/CL3 Rated Cable (No Conduit) |
| Primary Standards | UL 508 / UL 60950-1 | UL 1310 / CAN/CSA C22.2 |
| Typical Use Cases | Motors, Heaters, Main Panels | LEDs, Sensors, Smart Home Tech |
Why Trust Pacoli Power for Class 2 Power Supplies?
At Pacoli Power, we go beyond simply meeting standards - we deliver safe, reliable, and application-focused Class 2 power solutions built for modern demands. Our approach combines strict compliance, precision engineering, and real-world usability to ensure consistent performance across industries.
Every unit is engineered for stable output, low heat generation, and long-term durability. With high-quality components and advanced protection circuits, our power supplies maintain consistent performance even under continuous use.
From LED lighting systems to medical and industrial equipment, Pacoli Power offers tailored solutions to match your exact requirements. Our engineers can customize voltage, current, and connector configurations to ensure seamless integration.
We prioritize overcurrent, overvoltage, and short-circuit protection in every design. This ensures not only compliance, but also enhanced safety, reduced risk, and extended product lifespan in demanding environments.
Final Thoughts: Understanding Class 2 Power Supplies
Selecting a Class 2 power supply isn't just about following the law; it's about building a system that you can trust. By limiting the power at the source, you are proactively protecting your building from fire and your users from shock.
Whether you’re a professional installer or a tech-savvy homeowner, knowing the difference between Class 2 and Class II, and why those limits matter, will help you make smarter, safer decisions for your next project.
Are you ready to upgrade your next project with world-class power delivery? Reach out to our expert team at Pacoli Power today. We will help you navigate the standards and find the perfect, compliant solution for your specific needs.
Frequently Asked Question (FAQs)
1. What makes a power supply Class 2?
A power supply is classified as Class 2 when it limits its output to safe levels - typically no more than 100VA (100 watts) - to reduce the risk of electric shock and fire. It must also comply with UL 1310 safety standards, which regulate voltage, current, and overall design.
2. What is the difference between Class 2 and Class II?
A Class 2 power supply refers to output power limitations defined by UL and NEC for safety. In contrast, a Class II power supply refers to double insulation design under IEC standards, meaning it does not require a ground connection. They address different aspects of electrical safety.
3. What is the maximum wattage of a Class 2 power supply?
The maximum output for a Class 2 power supply is 100VA, which is roughly equal to 100 watts in most DC applications. This limit ensures safe operation in low-voltage systems and helps prevent overheating or electrical hazards.
4. Are Class 2 power supplies safe for home use?
Yes, Class 2 power supplies are widely considered very safe for home use because they are designed with strict power limits to minimize shock and fire risks. They are commonly used in LED lighting, security systems, and low-voltage devices, and are often required by electrical codes.
